CMADS Verification
CMADSV1.1+SWAT Verification in Liaoning
Verification

     In this study, the area above the Shenyang hydrological control station in the Hun River Basin which is a typical alpine region as the study area. CMADS is employed to drive the SWAT to simulate the runoff at four hydrological stations in this region.The simulation results show that the CMADS-driven SWAT has a good performance on the runoff simulation in the Hunhe River Basin.

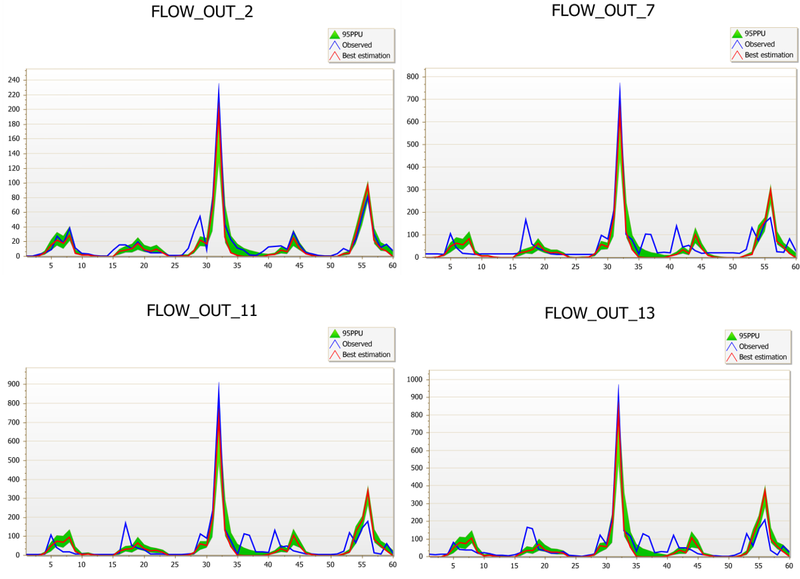

Fig.1. The results of calibration and validation of monthlyrunoff at the four hydrological stations using CMADS+SWAT.

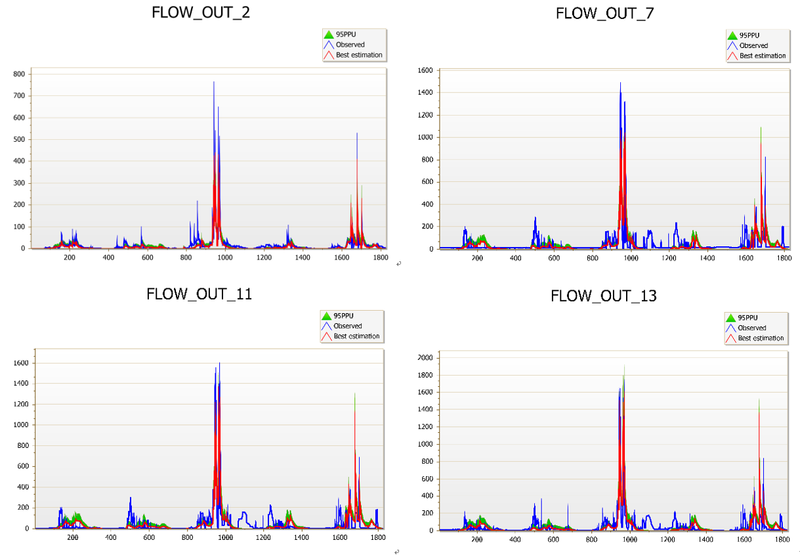

Fig.2. The results of calibration and validation of dailyrunoff at the four hydrological stations using CMADS+SWAT.



Tab.1.The monthly and daily values of NSEs and R2 during calibration andvalidation periods


Time

Station

Number of Sub-basin

Monthly Scale

Daily Scale

NSE

R2

NSE

R2

Calibration Period

*****

2

0.927

0.958

0.771

0.81

*****

7

0.893

0.918

0.747

0.778

*****

11

0.909

0.931

0.788

0.815

*****

13

0.913

0.931

0.793

0.812

Validation Period

*****

2

0.868

0.951

0.776

0.803

*****

7

0.733

0.745

0.588

0.615

*****

11

0.754

0.752

0.66

0.674

*****

13

0.77

0.767

0.672

0.689



Validation by Dr.Limin Zhang

Director:Xianyong Meng
